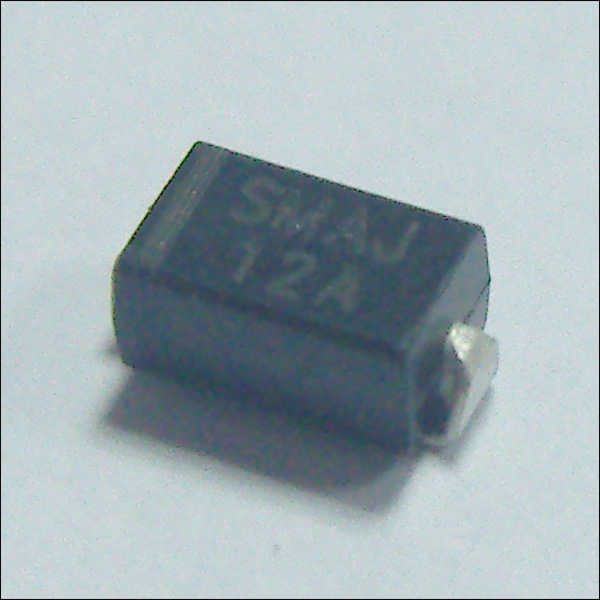

SMA/DO-214AC package SMAJ12A surface mount 400 watt Transil/TVS Diode/TVS(TRANSIENT VOLTAGE SUPPRESSOR) series

SMA/DO-214AC package surface mount 400 watt Transil/TVS Diode/TVS(TRANSIENT VOLTAGE SUPPRESSOR)

Part Number		Device Marking Code		Reverse Stand-Off Voltage	Breakdown Voltage@IT	Breakdown Voltage@IT	Test Current	Max. Clamping Voltage @IPP	Peak Pulse Current	Reverse Leakage @VRWM


UNI-POLAR	BI-POLAR	UNI	BI	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(µA)
SMAJ5.0A	SMAJ5.0CA	HE	TE	5	6.4	7.25	10	9.2	43.5	800
SMAJ6.0A	SMAJ6.0CA	HG	TG	6	6.67	7.67	10	10.3	38.8	800
SMAJ6.5A	SMAJ6.5CA	HK	TK	6.5	7.22	8.3	10	11.2	35.7	500
SMAJ7.0A	SMAJ7.0CA	HM	TM	7	7.78	8.95	10	12	33.3	200
SMAJ7.5A	SMAJ7.5CA	HP	TP	7.5	8.33	9.58	1	12.9	31	100
SMAJ8.0A	SMAJ8.0CA	HR	TR	8	8.89	10.23	1	13.6	29.4	50
SMAJ8.5A	SMAJ8.5CA	HT	TT	8.5	9.44	10.82	1	14.4	27.7	20
SMAJ9.0A	SMAJ9.0CA	HV	TV	9	10	11.5	1	15.4	26	10
SMAJ10A	SMAJ10CA	HX	TX	10	11.1	12.8	1	17	23.5	5
SMAJ11A	SMAJ11CA	HZ	TZ	11	12.2	14	1	18.2	22	5
SMAJ12A	SMAJ12CA	IE	UE	12	13.3	15.3	1	19.9	20.1	5
SMAJ13A	SMAJ13CA	IG	UG	13	14.4	16.5	1	21.5	18.6	5
SMAJ14A	SMAJ14CA	IK	UK	14	15.6	17.9	1	23.2	17.2	5
SMAJ15A	SMAJ15CA	IM	UM	15	16.7	19.2	1	24.4	16.4	5
SMAJ16A	SMAJ16CA	IP	UP	16	17.8	20.5	1	26	15.3	5
SMAJ17A	SMAJ17CA	IR	UR	17	18.9	21.7	1	27.6	14.5	5
SMAJ18A	SMAJ18CA	IT	UT	18	20	23.3	1	29.2	13.7	5
SMAJ20A	SMAJ20CA	IV	UV	20	22.2	25.5	1	32.4	12.3	5
SMAJ22A	SMAJ22CA	IX	UX	22	24.4	28	1	35.5	11.2	5
SMAJ24A	SMAJ24CA	IZ	UZ	24	26.7	30.7	1	38.9	10.3	5
SMAJ26A	SMAJ26CA	JE	VE	26	28.9	33.2	1	42.1	9.5	5
SMAJ28A	SMAJ28CA	JG	VG	28	31.1	35.8	1	45.4	8.8	5
SMAJ30A	SMAJ30CA	JK	VK	30	33.3	38.3	1	48.4	8.3	5
SMAJ33A	SMAJ33CA	JM	VM	33	36.7	42.2	1	53.3	7.5	5
SMAJ36A	SMAJ36CA	JP	VP	36	40	46	1	58.1	6.9	5
SMAJ40A	SMAJ40CA	JR	VR	40	44.4	51.1	1	64.5	6.2	5
SMAJ43A	SMAJ43CA	JT	VT	43	47.8	54.9	1	69.4	5.7	5
SMAJ45A	SMAJ45CA	JV	VV	45	50	57.5	1	72.7	5.5	5
SMAJ48A	SMAJ48CA	JX	VX	48	53.3	61.3	1	77.4	5.2	5
SMAJ51A	SMAJ51CA	JZ	VZ	51	56.7	65.2	1	82.4	4.9	5
SMAJ54A	SMAJ54CA	RE	WE	54	60	69	1	87.1	4.6	5
SMAJ58A	SMAJ58CA	RG	WG	58	64.4	74.1	1	93.6	4.3	5
SMAJ60A	SMAJ60CA	RK	WK	60	66.7	76.7	1	96.8	4.1	5
SMAJ64A	SMAJ64CA	RM	WM	64	71.1	81.8	1	103	3.9	5
SMAJ70A	SMAJ70CA	RP	WP	70	77.8	89.5	1	113	3.5	5
SMAJ75A	SMAJ75CA	RR	WR	75	83.3	95.8	1	121	3.3	5
SMAJ78A	SMAJ78CA	RT	WT	78	86.7	99.7	1	126	3.2	5
SMAJ85A	SMAJ85CA	RV	WV	85	94.4	108.2	1	137	2.9	5
SMAJ90A	SMAJ90CA	RX	WX	90	100	115.5	1	146	2.7	5
SMAJ100A	SMAJ100CA	RZ	WZ	100	111	128	1	162	2.5	5
SMAJ110A	SMAJ110CA	SE	XE	110	122	140.5	1	177	2.3	5
SMAJ120A	SMAJ120CA	SG	XG	120	133	153	1	193	2	5
SMAJ130A	SMAJ130CA	SK	XK	130	144	165.5	1	209	1.9	5
SMAJ150A	SMAJ150CA	SM	XM	150	167	192.5	1	243	1.6	5
SMAJ160A	SMAJ160CA	SP	XP	160	178	205	1	259	1.5	5
SMAJ170A	SMAJ170CA	SR	XR	170	189	217.5	1	275	1.4	5
SMAJ180A	SMAJ180CA	ST	YT	180	198	230.4	1	292	1.3	5
SMAJ190A	SMAJ190CA	SV	YV	190	209	243.2	1	308	1.3	5
SMAJ200A	SMAJ200CA	SX	YX	200	220	256	1	324	1.2	5
SMAJ210A	SMAJ210CA	SZ	YZ	210	231	268.8	1	340	1.2	5
SMAJ220A	SMAJ220CA	GE	ZE	220	242	281.6	1	356	1.1	5
SMAJ250A	SMAJ250CA	SZ	VZ	250	279	309	1	405	1	5
SMAJ300A	SMAJ300CA	TE	UE	300	335	371	1	486	0.8	5
SMAJ350A	SMAJ350CA	TG	UG	350	391	432	1	567	0.7	5
SMAJ400A	SMAJ400CA	TK	UK	400	447	494	1	648	0.6	5
SMAJ440A	SMAJ440CA	TM	UM	440	492	543	1	713	0.6	5
Notes: For bidirectional type having VRWM of 10 volts and less, the IR limit is double.
