ThinkiSemi is professional manufacturer of schottky barrier rectifier diodes with more than 20 years experience in China.
ThinkiSemi S10U45S/S10U50S diode using matured planar passivation FAB process with lower IR and lower VF value.

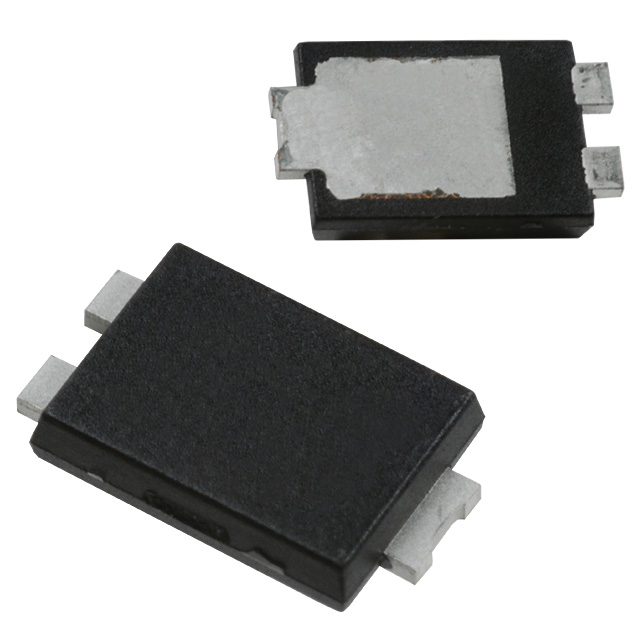

PowerDI 5/PowerDI®5/PowerDI™5/TO-277A/SMPC Package Outline.Product Status:Mature/Mass Production.
ThinkiSemi-Schottky Diode Manufacturer in Shanghai,China who supplying all diodes and transistors alternative items.
Application: LED Driver,Adapter,Mobile Device Charger,UPS and SMPS etc..

Download PDF File Datasheets	Part Number	Peak Repetitive  Reverse Voltage	Max.Average Rectified Current		Max.Peak Forward Surge Current	Forward Voltage Drop		Max.Reverse Current TA=25℃	Typical Junction Capacit	Package
		VRRM	IO @ TA		IFSM	VF @ IF		IR	Cj
		V	A	℃	A	V	A	mA	pF
	S10U45S	45	10.0	120	275	0.47	10.0	0.3	400	TO-277/SMPC
	S10U50S	50		120	200	0.47	10.0	0.5	400
