ThinkiSemi is professional manufacturer of all type transistors with more than 20 years experience in China.
THINKI 2SD1163A/NPN Silicon Power Transistor for Application of Brushless DC Motors and Drives,BLDCM.

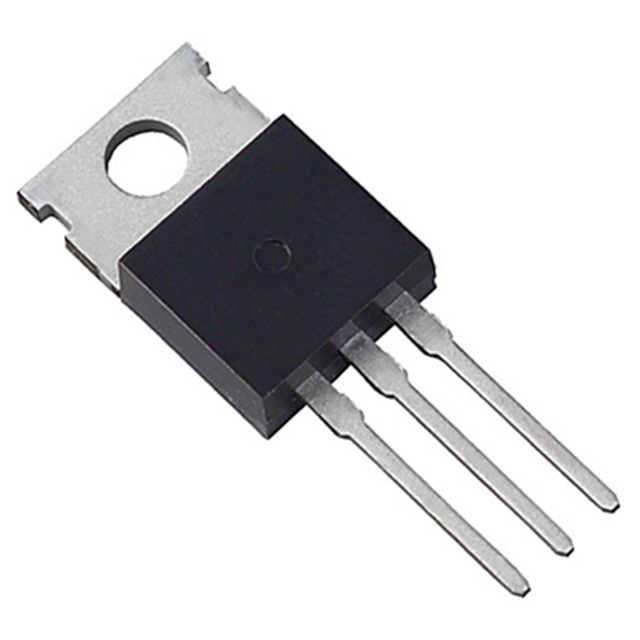

TO-220CB package outline is with 5" planar process chip/wafer.TO-220CE package outline is with 3" mesa process wafer/chip.
ThinkiSemi latest&mature technology own a better specification parameter than HITACHI(RENESAS),NEC and TOSHIBA brand.

Download Datasheets

Part Number

Pc (W)

Ic (A)

(B)Vcbo

(B)Vceo

Icbo

Polarity

HFE

@

Vce (sat)

@

Tf  (us)

Package Outline

V

V

mA

MIN

MAX

Ic(A)

Vce(V)

(V)

Ic(A)

Ib(A)

2SD1163A

≥60

7

>400

>200

<5

NPN

60

100

1.0

5.0

<1

5.0

0.5

0.5

TO-220CB

2SD1163A

≥100

8

>350

>150

<5

NPN

80

180

1.0

5.0

<1

5.0

0.5

0.5

TO-220CE
